Liquidsoap goes RESTful

Martin Kirchgessner

2025-06-13 Liquidshop #5

In the next 25 minutes

HTTP interactions with a Liquidsoap script
code examples

Context: community FM

A bit of context

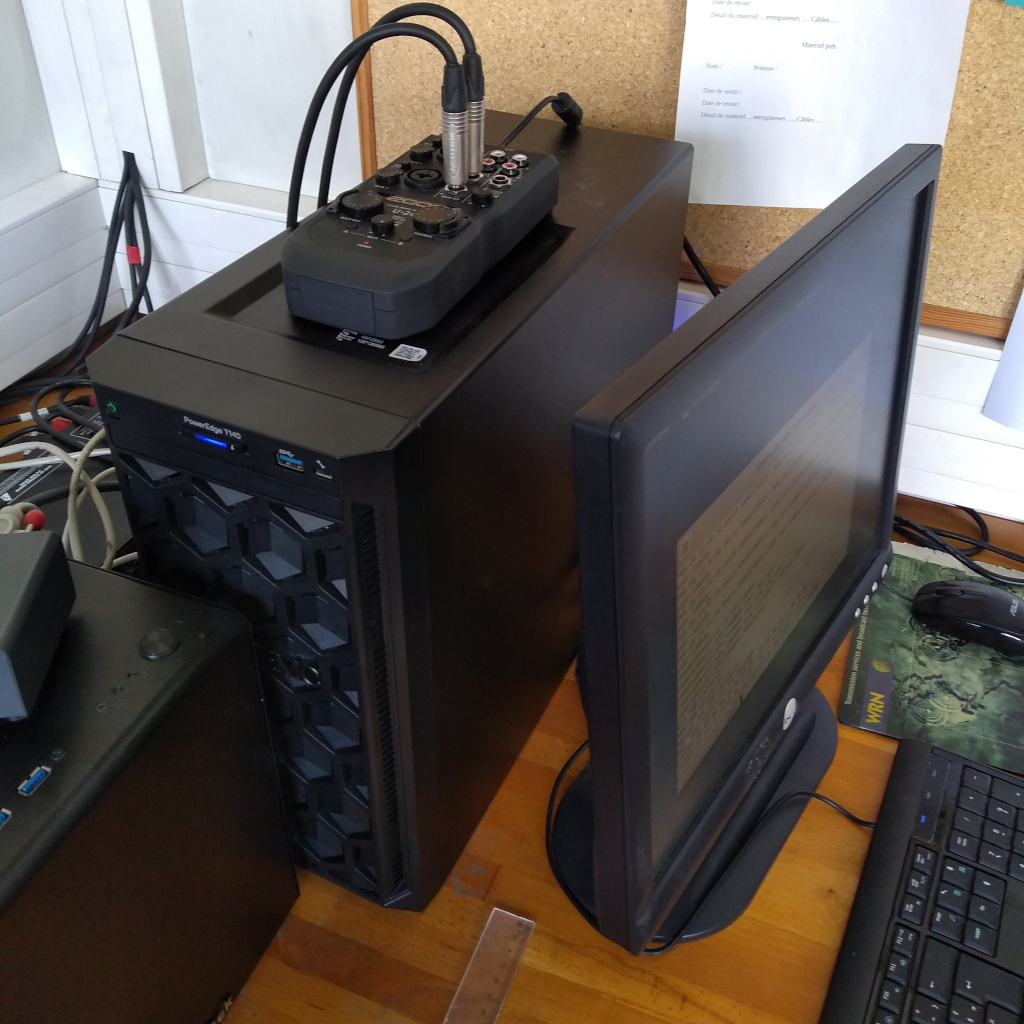

Liquidsoap runs Radio Campus Grenoble since 2021.

Actually, it's

Liquidsoap
Showergel (UI)
Beets (music library)

cf. Liquidshop #3

The radio's core

programs = fallback(track_sensitive=false,
    live, # input.harbor
    retransmit, # input.http
    recorded_shows, # switch([playlist, ...])
    autodj,  # request.dynamic(picking in Beets)
)

radio = fallback(
    delay(780. , playlist("/home/radio/jingles")),
    programs
)

It's all fun & music

BUT

Writing the .liq is a barrier

Even with examples

Accessing the machine is not enough

Although dropping music and recorded shows in folders is fine.

Liquidsoap's telnet is fading away

Old, unstructured protocol
Commands are removed progressively

harbor.http.register[.simple] 🚀

Architecture?

Serve an SPA with harbor.http.static
Harder DB interaction
Easy denial of service

Architecture?

Usual web+DB environment
No message queue
Potential deny of service

Architecture?

Usual web+DB environment
Isolated (safer) playout
No message queue
Repeated endpoints

Chosen for the project reboot as "RadioZ"

One script to rule them all

Less flexibility for the end-user
Reliability
Easy updates

Let's see the scripts

Simplified excerpts from radioz.liq

New radio core

programs = fallback(track_sensitive=false,
    live, # input.harbor
    retransmit, # input.http
    carts, # request.queue(id="carts")
    autodj,  # request.queue("autodj")
)

radio = fallback(
    delay(780. , request.queue(id="jingles")),
    programs
)

Push tracks

harbor.http.register(
  port=api_port,
  method="POST",
  "/queue/:queue_name",
  queue_POST
)

def queue_POST(req, res) =
  queue_name = req.query["queue_name"]
  let json.parse (posted:{
    path: string,
    artist: string?,
    title: string?,
    radioz_sound_id: int?,
  }) = req.body()

  annotated = "annotate:pushed=\"#{time()}\"" ^
    ",radioz_sound_id=\"#{null.get(posted.radioz_sound_id)}\"" ^
    ",title=\"#{null.get(posted.title)}\"" ^
    ",artist=\"#{null.get(posted.artist)}\":" ^
    posted.path

  r = request.create(annotated)
  queues[queue_name].push(r)
  res.status_code(200)
  res.json({ok=request.id(r)})
end

Tracking played tracks

radio.on_metadata(
  fun(md) -> thread.run(fast=false, {
    post_to_log(md)
  })
)

def post_to_log(md)
  data = json()
  data.add("title", md["title"])
  data.add("artist", md["artist"])
  data.add("radioz_sound_id", md["radioz_sound_id"])
  data.add("on_air", time.string('%Y-%m-%d %H:%M:%S'))
  data.add("source", current_source_id())
  _ = post_to_radioz("/metadata_log", data)
end

How to know who's on air

current_source_id = ref("starting")

def transition_source(transitioning_from, transitioning_to)
  current_source_id := source.id(transitioning_to)
  transitioning_to
end

radio = fallback([jingles, programs],
  transitions=[transition_source, transition_source],
)

Would love to crossfade here, but #4179🙏

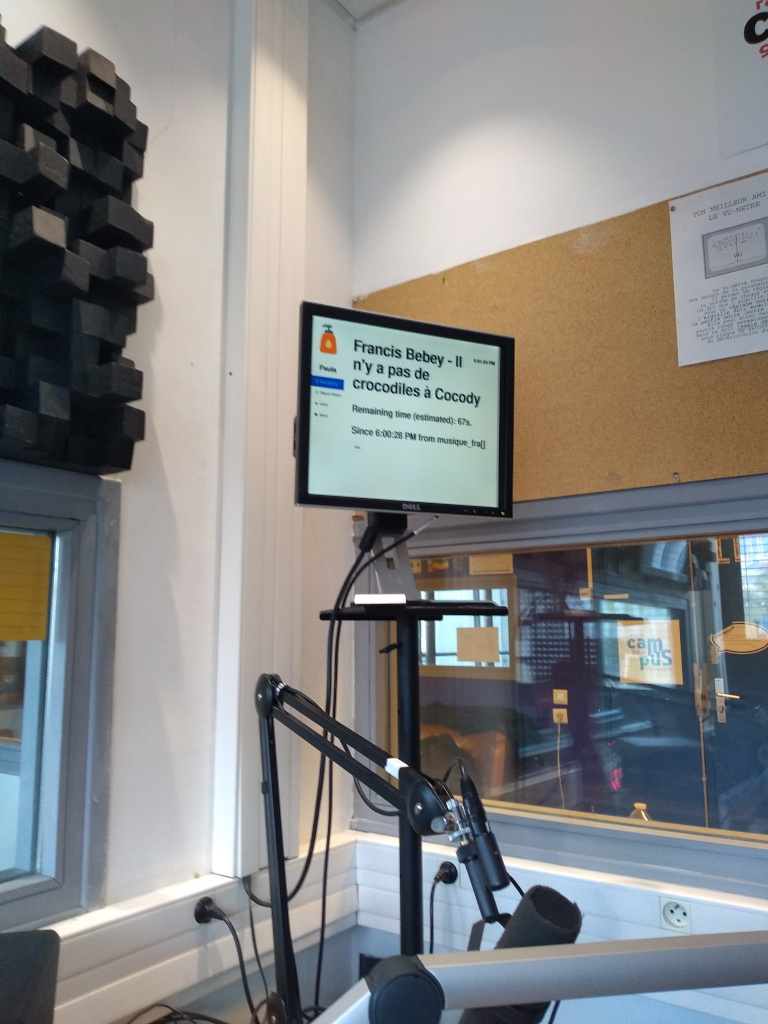

Push to "live" page

thread.run(every=1., delay=1., fast=false, post_to_live)

def post_to_live()
  data = json()
  data.add("source", current_source_id())
  data.add("remaining", string.float(main_output.remaining()))
  data.add("elapsed", string.float(main_output.elapsed()))
  data.add("time", time.string('%Y-%m-%dT%H:%M:%S%z'))

  fill_next(data, "next_jingle", jingles_queue)
  fill_next(data, "next_autodj", autodj_queue)
  fill_next(data, "next_cart", carts_queue)

  _ = post_to_radioz("/live", data)
end

More HTTP verbs

harbor.http.register(
  port=api_port,
  method="DELETE",
  "/live",
  live_DELETE
)

def live_DELETE(req, res) =
  main_source.skip()
  res.status_code(200)
end

Warning

request is a liquidsoap module

def queue_POST(request, response) =
  ...
  r = request.create(annotated) # !!!!
  ...

Use (req, res)

Dev/admin/user/listener impact

Push or pull

The scheduler can query the Liquidsoap process

The Liquidsoap process can query the scheduler

👌

A common YAML config

path_to_config = environment.get("RADIOZ_CONFIG")

let yaml.parse (conf:{
    scheduler:{
      bind:string,
    },
    liq_config:{
      api_port:float,
      token:string,
      start_sound:string,
    },
  }
}) = file.contents(path_to_config)

Contacting the scheduler process

def post_to_radioz(endpoint, data)
  res = http.post(
    "http://#{conf.scheduler.bind}#{endpoint}",
    headers=[
      ("Content-Type", "application/json; charset=UTF-8"),
      ("X-Auth-Token", conf.liq_config.token),
    ],
    data=json.stringify(data)
  )
  if res.status_code != 200
  then
    log(label="Warning", "Error while posting #{endpoint} to webapp: #{res} #{res.status_code} #{res.status_message}")
  end
  res
end

Authenticate incoming queries

harbor.http.middleware.register(check_token)

def check_token(req, res, next)
  if req.headers["x-auth-token"] != conf.liq_config.token then
    res.status_code(401) # Unauthorized
  else
    next(req, res)
  end
end

Common authentication

For end-users

def auth_function(login) =
  res = post_to_radioz("/can_live", login)
  if res.status_code == 200 then
    log("Access granted to #{login.user}")
    true
  else
    log("Access denied to #{login.user}")
    false
  end
end

live = input.harbor(auth=auth_function, port=9000, "live")

It's fast !

Pushing tracks & fading to live seamlessly.

It would be nice if...

We could know current file's path

So we could have an auto-reload !

file.watch(current_script_path(), restart)

Log like a web server

have the request's host/IP
access log in a dedicated file

def http_log(req, res, next)
  started_at = time()
  next(req, res)
  duration = time() - started_at
  log(label="http", "#{req.method} #{req.path} #{res.status_code.current()} #{duration}")
end
harbor.http.middleware.register(http_log)

⚠️ errors here will block the response silently ⚠️

Thanks for Liquidsoap

Follow progress @ sr.ht/~martink/radioz
